Why JSW One TMT
10 benefits, One TMT
Best-in-class Rib Design
Superior Chemistry
Corrosion Resistant
European Technology
Budget Friendly
Higher Flexibility & Bendability
Enhanced Structural Strength
Supreme Concrete Grip
Uniform Gauge & Dimension
Heat/Quake Resistant
More benefits
Quicker construction
Fewer bars are required due to its higher strength, leading to accelerated bar placement and crane loads. This results in leaner construction, reduced concrete use
and labour expenses.
Cost saving
Reduced TMT rebar consumption in load-bearing structures by using narrower columns and beams which reduces concrete requirement and labor expenses.
Increased carpet area
Lower TMT consumption due to higher strength results in narrower columns, thus increasing interior floor space and enabling more area for use.
Advantages over other TMT brands
| Advantage | Significance | Ordinary Brands | JSW One TMT |
|---|---|---|---|
| YS | Indicator of yield strength of the material. The point at which the material deforms beyond repair |
415-500 MPa | >570 MPa |
| UTS/YS | It measures a material’s ductility and toughness, showing its ability to absorb energy before fracturing and withstand seismic loads. |
1.06 | 1.15 (exceeds BIS standards) |
| AR Value | The better the AR value and rib design, the stronger the bond with concrete. |
1.10 | 1.4 (for 8mm) |
| (S+P) % | Less (S&P) % in TMT reduces impurities and brittleness and improves ductility. This is crucial for structural safety during earthquakes and other natural disasters. |
>0.12 (not qualified) |
0.075/0.095 (as per standard) |
Trusted by Engineers
Download brochure
Technical specifications
| Product attributes |
Fe 415 | Fe 500 | JSW One TMT Fe 550 |
JSW One TMT Fe 500D |
|---|---|---|---|---|
| YS (min), MPa | 415 | 500 | 570 | 530 |
| UTS (min), MPa | 485 | 545 | 640 | 625 |
| UTS/YS (min) | 1.1 | 1.08 | 1.12 | 1.18 |
| % E (min) | 14.5% | 12% | 18% | 22% |
| Product attributes |
Fe 415 | Fe 500 | JSW One TMT Fe 550 |
JSW One TMT Fe 500D |
|---|---|---|---|---|
| % C (max) | 0.30 | 0.30 | 0.20 | 0.18 |
| % P (max) | 0.06 | 0.065 | 0.045 | 0.035 |
| % S (max) | 0.06 | 0.065 | 0.035 | 0.025 |
| % (S+P) max | 0.110 | 0.105 | 0.08 | 0.060 |
| % N2 (max) | 0.012 | 0.012 | 0.010 | 0.010 |
| % CE (max) | 0.42 | 0.42 | 0.35 | 0.300 |
Certifications for high
quality system standards
ISO 9001 : 2015
ISO 14001 : 2015
ISO 45001 : 2018
Manufacturing process
1
Steelmaking
Steelmaking
- High-quality raw material
- Stringent process control of steel refining to remove impurities
- Result: Superior chemistry to ensure better TMT quality
2
Continuous casting
Continuous casting
• Compact internal structure
• Controlled process to remove non-metallic impurities
• High malleability for hot rolling
• Perfect sizes of the billets to produce accurate dimensions and uniform mechanical properties of TMT bars
3
Rolling
Rolling
- High-speed modern rolling mill
- Perfect quality roll with precision CNC cut for rib marking
- Result: Uniform gauge & dimension, smooth surface and best-in-class rib design
4
Thermo mechanical treatment
Thermo mechanical treatment
- European technology
- Perfect balance between outer martensite and ferrite/pearlite core
- Result: Higher flexibility & bendability and enhanced structural strength
5
Cutting & bundling
Cutting & bundling
- Accurate length of TMT
- Result: Ease of planning at the site with precise lengths of all the bars
Applications
Residential buildings

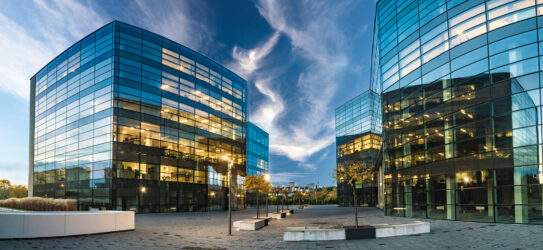

Commercial structures

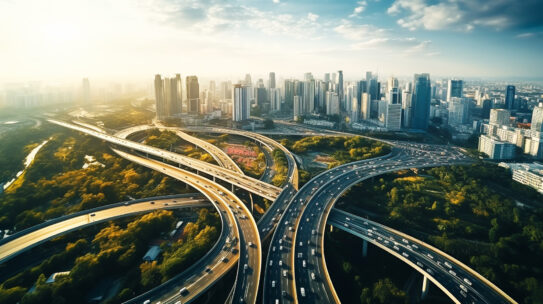

Bridges and flyovers
Infrastructure projects
Industrial plants

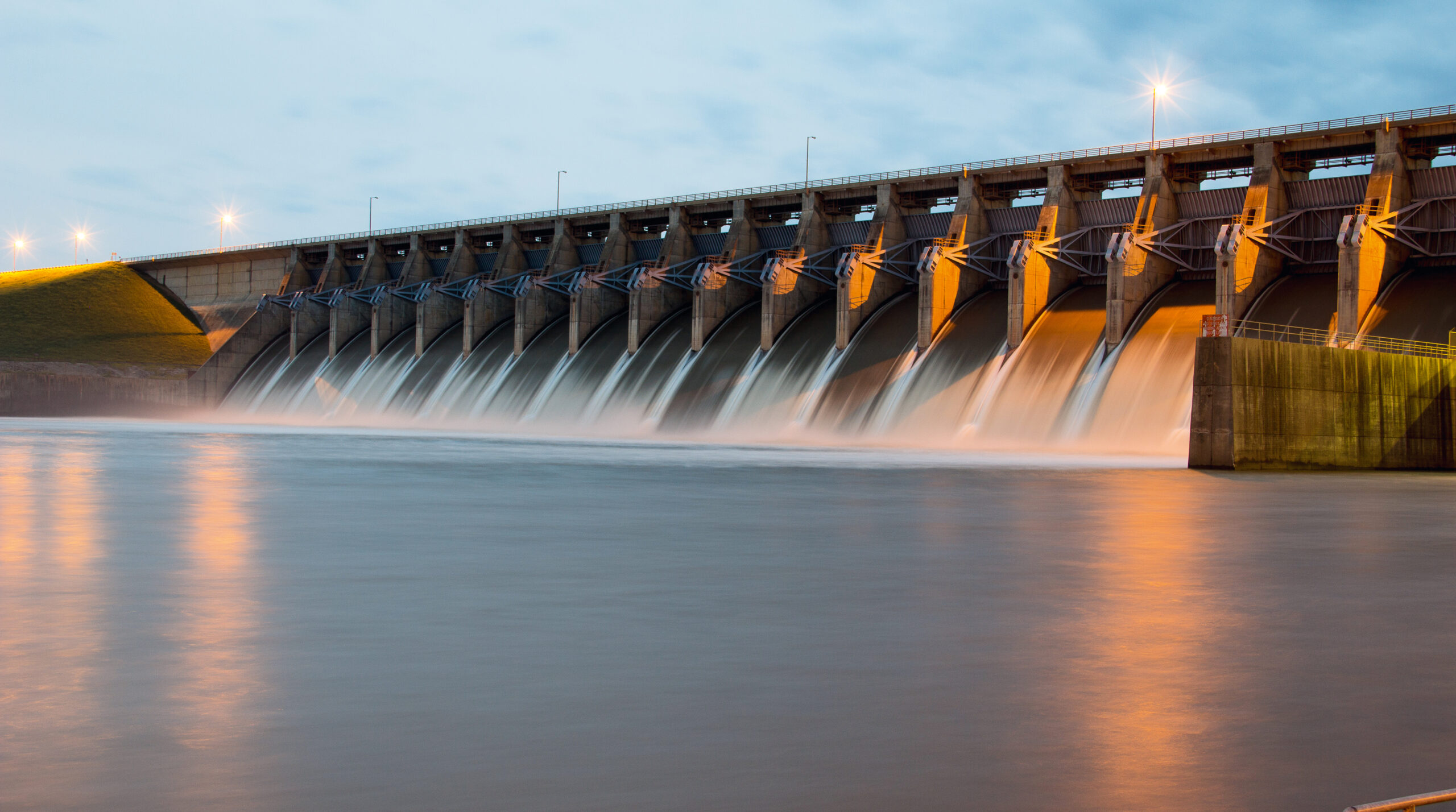

Dams

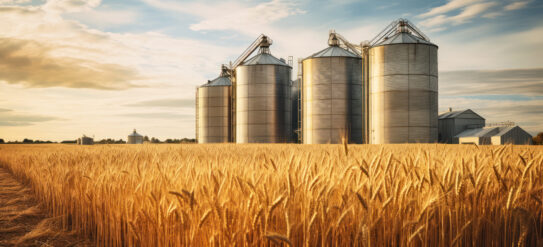

Grain silos

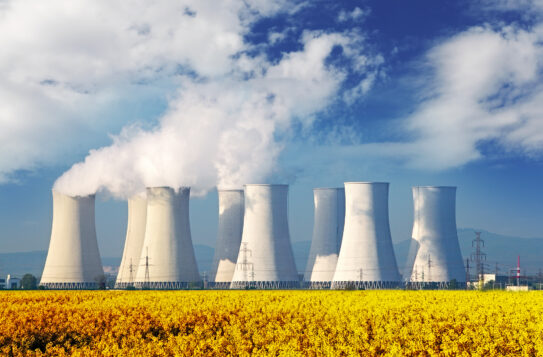

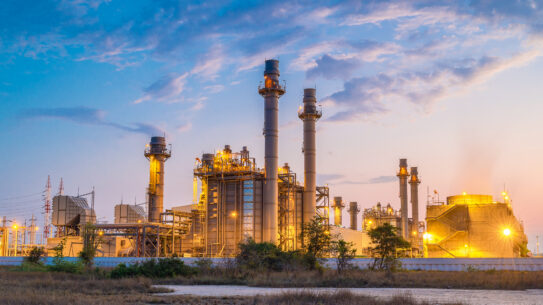

Power plant chimney
JSW One TMT Cost estimator
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Phasellus cursus massa ex. Suspendisse accumsan, magna vitae sollicitudin mollis, nulla nisi accumsan tellus, elementum congue ex ligula.
25000+ happy customers
Outstanding products!
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Phasellus cursus massa ex. Suspendisse accumsan, magna vitae sollicitudin.
-Sharn Gull
Outstanding products!
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Phasellus cursus massa ex. Suspendisse accumsan, magna vitae sollicitudin.
-Khushboo Chauhan
Outstanding products!
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Phasellus cursus massa ex. Suspendisse accumsan, magna vitae sollicitudin.
-Khushboo Chauhan
Outstanding products!
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Phasellus cursus massa ex. Suspendisse accumsan, magna vitae sollicitudin.
-Khushboo Chauhan
Video gallery
100% Certified Nahi, Toh TMT Nahi
Building a stronger India, together
Best project deserves best TMT
10 benefits, One TMT
About us
JSW One TMT is a BIS-compliant and superior-quality TMT. Each bar is chemically and mechanically tested to ensure strength and durability across every structure. JSW One’s DNA is dedicated to nation-building, a legacy we uphold every day. We see democratising access to quality construction materials to manufacturers and end consumers as a strong lever which can help fulfil India’s ambitions, and that’s what we have set out for with the launch of JSW One TMT.
